Understanding Toilet Anatomy and Fixing Common Toilet Problems
Date Published: March 13, 2025, Last Updated on March 24, 2025 by Matthew Carter
The toilet is one of the most essential fixtures in any home, yet many homeowners don’t fully understand how it works. Knowing its basic anatomy can help you identify and fix common issues before they turn into major plumbing problems.
Understanding how a toilet functions makes troubleshooting easier and can save both time and money. While some issues have simple DIY fixes, others may require professional assistance from a plumber in Logan to prevent water damage and costly repairs.

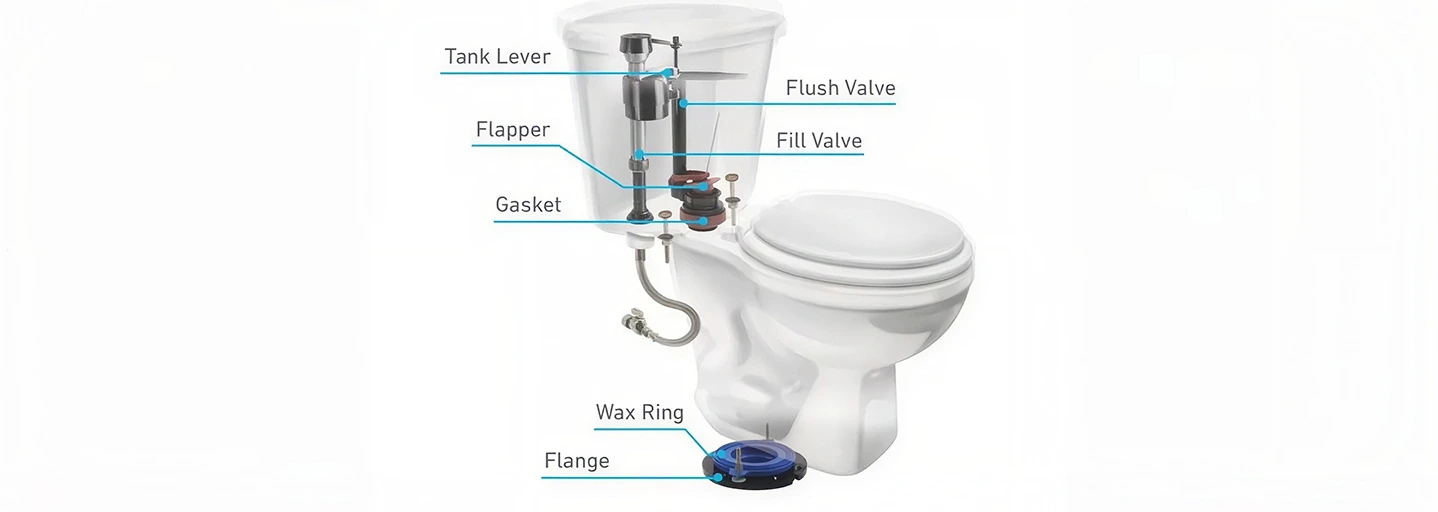

Toilet anatomy: How toilet works
Fill valve
This component controls the water flow into the toilet tank after a flush, allowing it to refill to the correct level before automatically shutting off to prevent overflow.
Flush valve
Responsible for releasing water from the tank into the bowl during flushing, it ensures a strong flow to clear waste efficiently.
Flush valve washer (Flapper)
This is the rubber seal that sits over the flush valve opening, which lifts when flushing to allow water into the bowl and seals afterwards to stop the continuous water flow.
Braided hoses
Flexible, durable hoses that connect the toilet to the home’s water supply, ensuring a steady and secure flow of water into the fill valve.
Toilet seal (wax ring)
A thick, watertight ring that sits between the base of the toilet and the floor drain, preventing leaks and foul odours from escaping.
Rubber flush cone
This small but essential rubber fitting creates a tight seal between the flush pipe and the toilet pan, preventing water from leaking during flushing.
Pan connector
A pipe that links the toilet pan to the drain system ensures waste is directed properly. It provides a secure and leak-proof connection between the toilet and the drainage pipe.
In some cases, when the toilet and drain opening are not perfectly aligned, an offset pan connector may be used to adjust the positioning. However, these connectors can create long-term plumbing issues, such as blockages, poor drainage, and added strain on the toilet’s flushing system.
For a more reliable and trouble-free installation, it is always best to align the toilet correctly and use a straight pan connector whenever possible.
Common toilet problems and how to fix them
Toilets are built to last, but like any frequently used fixture, they can develop issues over time. This can lead to wasted water, higher bills, or water leaks.
Identifying the cause early can help you fix minor problems or know when to call a plumber. Here are some common toilet issues and how to resolve them.
Toilet keeps running
A continuously running toilet can waste a significant amount of water. The most common reasons are a faulty flapper, a misaligned chain, or a worn-out fill valve.
To fix this, check the flapper for wear and replace it if necessary. If the chain is too tight or tangled, adjust it to allow the flapper to seal correctly. If the issue persists, the fill valve may need to be replaced.
Toilet won’t flush properly
If your toilet isn’t flushing fully, there may be low water levels, buildup in the flush holes, or a worn-out flapper. Check that the water level in the tank is high enough.
Pour vinegar around the inside of the bowl to help clear any buildup affecting water flow. If the flush is still weak, the rubber flapper inside the tank may need replacing.
Toilet is leaking at the base
A toilet leaking at the base is often due to a loose bolt or a worn-out wax ring. Try tightening the bolts at the base to secure the seal. If the leak persists, the wax ring may need replacing to prevent water damage and mould growth.
Weak or slow flushing
A partial blockage, low water level, or mineral buildup often causes a weak flush. Try using a plunger to clear any minor clogs. If the flush is still weak, check the water level in the tank and adjust the float if needed.
Toilet makes gurgling noises
A gurgling toilet often means there’s a blockage in the drain or vent pipe. Try using a plunger to clear minor clogs. If the noise continues, the vent pipe may be blocked by debris.
If other drains in your home are also affected, it could be a bigger issue with the sewer line that needs professional attention.
Water trickles into the bowl long after flushing
If water continues to enter the bowl after flushing, the most likely cause is a leaking flapper or a worn-out fill valve.
Test the flapper by adding food colouring to the tank. If the colour appears in the bowl without flushing, replace the flapper. If the fill valve keeps refilling the tank unnecessarily, install a new one.
Cracks in the toilet bowl or tank
Cracks in the toilet bowl or tank can lead to leaks and water damage. Even tiny cracks allow moisture to escape, causing mould and a smelly toilet. While epoxy may temporarily seal minor cracks, replacing the toilet is the best solution if leaks persist.
If you’re facing recurring leaks or planning a bathroom upgrade, it’s a good time to check for other plumbing issues. Upgrading fixtures, fixing leaks, and ensuring proper drainage can help prevent costly repairs.
Check out our guide on shower leak solutions to ensure your entire bathroom is in top condition.
When to call a professional plumber in Logan
Some toilet issues can be fixed with simple DIY solutions, but others require expert attention. Persistent leaks, flushing problems, or unusual noises can indicate deeper plumbing issues that, if ignored, may lead to costly repairs.
If you’ve tried basic fixes and the problem persists, it’s best to call a professional plumber to ensure your toilet works properly and prevent further damage.
